Waste Plastic Briquette Machine For Sale

Waste plastic briquetting machines can get high-calorific value briquettes from various soft plastics (PP, PE, PS, PMMA, PVC, ASR. HDPE, EPS, etc). Plastic briquette fuels are a good alternative to traditional fuels.

WASTE PLASTIC BRIQUETTE MACHINE TYPES

There are two main types of plastic waste briquetting machines, piston type and ring die type. These machines can transfer waste plastic into solid fuel briquette, but their advantages are different. The piston type is more energy-efficient， and the briquette size is more flexible (20mm-60mm), but the machine’s maximum capacity is usually no more than 3ton/h per set. However, the ring molds briquette machine output is higher, but it can generally only produce square or cylinder shape plastic briquettes from 15 mm to 32 mm, with a maximum size of no more than 40.

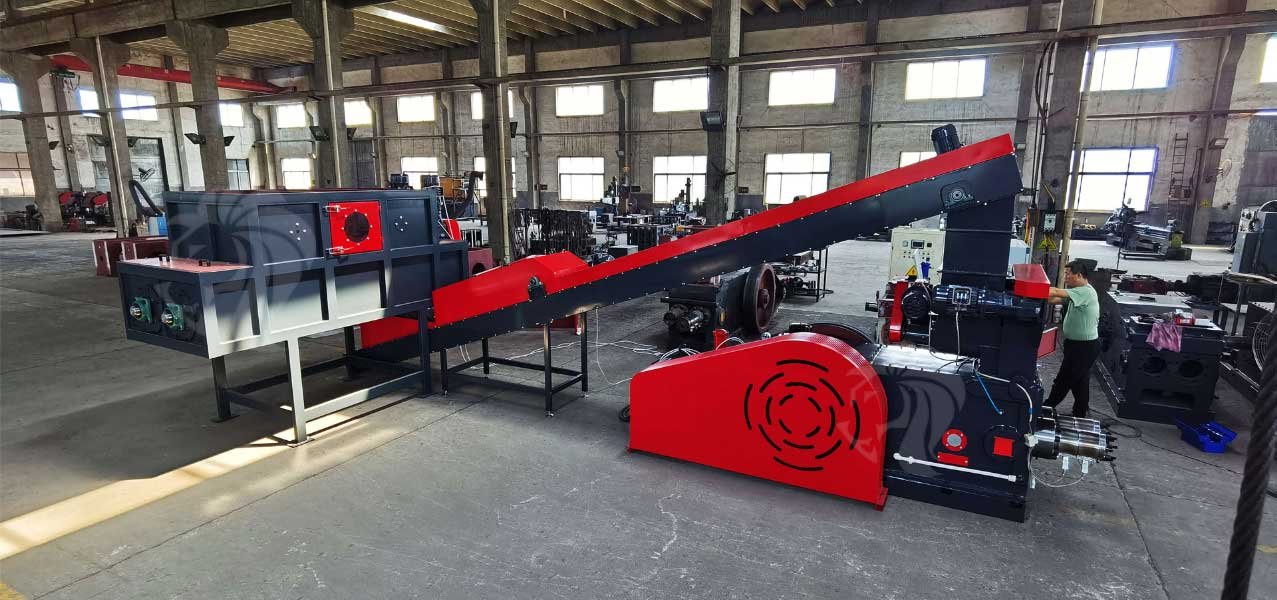

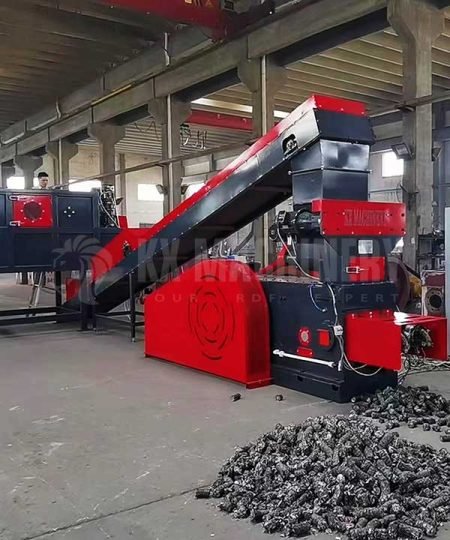

PLSTPN TYPE WASTE PLASTIC BRIQUETTE MACHINE

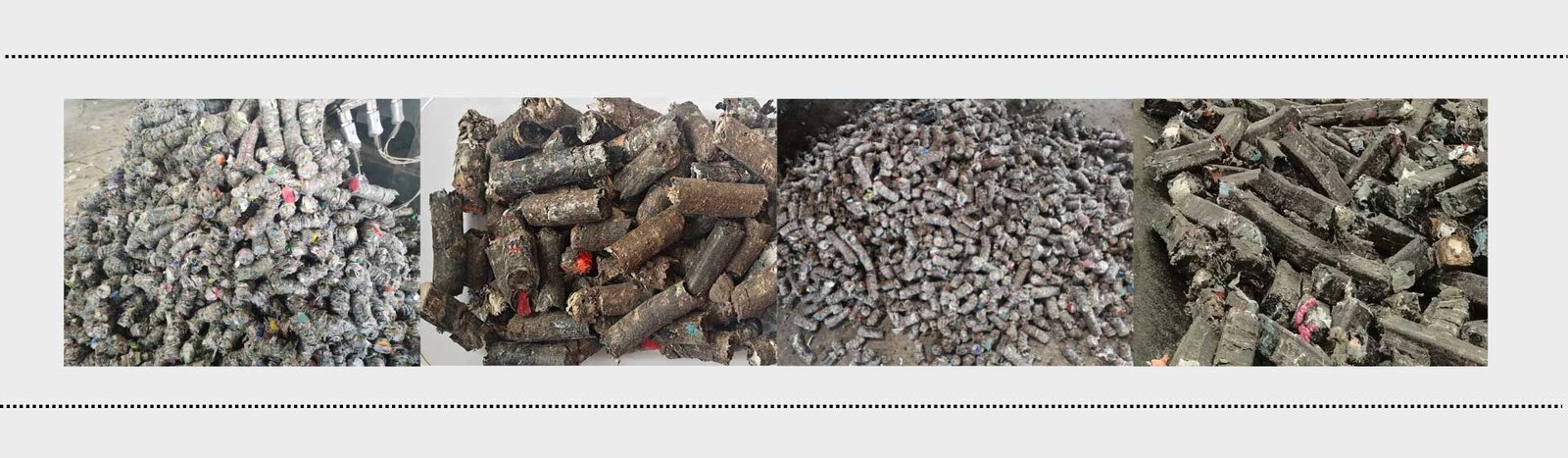

WASTE PLASTIC BRIQUETTE

The density of briquette produced only with plastic waste generally does not exceed 1g/cm3, especially when processing soft plastic. The plastic briquette diameter is generally from 20 mm to 40 mm, the length is adjustable, and the density is adjustable according to the briquette application. The plastics can be mixed with other wastes, such as wood sawdust, waste paper, iron sand, etc. Such production lines need to be customized based on your project requests.

PRE-TREATMENT TO THE WASTE PLASTIC

Waste plastics mainly come from the screening process of city waste or industrial waste, and generally contain a certain proportion of waste paper, textiles, or wood waste. Secondary screening and cleaning maybe not be needed if no special requests. It can be directly briquette after shredding. When the moisture content is high or contains other impurities, other pre-treatments are required. You can contact our engineers for further communication.

ADVANTAGE OF DENSIFICATION & BRIQUETTING

Maximize density, reduce volume, and reduce transportation costs
The briquette size, moisture content, and density are uniform, and the combustion and output heat value is more stable than burning plastic direct.
Through densification, the moisture content is reduced during processing, and the calorific value becomes higher.
The briquette machine has large output and energy savings.
Simple operation and maintenance, fully automatic PLC control, stable operation, and low energy consumption

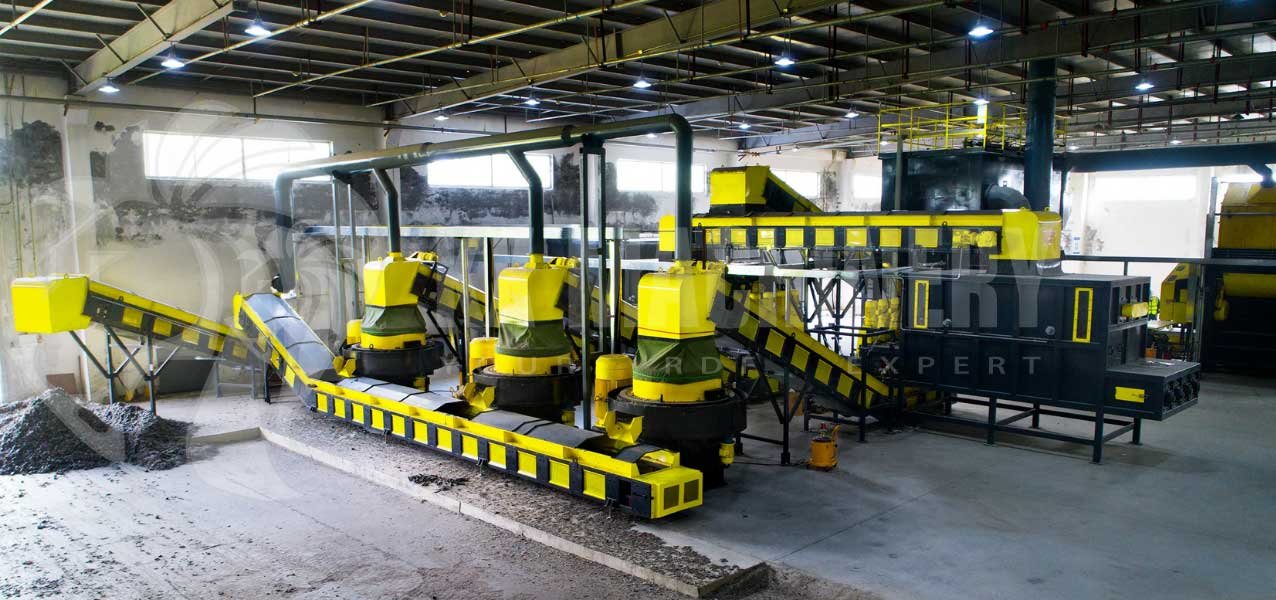

RING MOLDS TYPE WASTE PLASTIC BRIQUETTE MACHINE

MACHINES&PLANTS VIDEO FOR WASTE PLASTIC

Every customer’s raw material will be different, so if you plan to send some raw materials to our factory, we are willing to complete a test run for you. It can minimize the risk and get the most suitable compression ratio.

What can we do for you?

KX is a professional factory with rich experience in turnkey projects. We are sure to provide you with more surprises and services than you expected.

The best design & quality machines
Quick reply within 2 hours
Provide the best briquette proposal within 24 hours.
Free test run service for special raw materials
Detailed case analysis, make you know briquette machines soonest.
