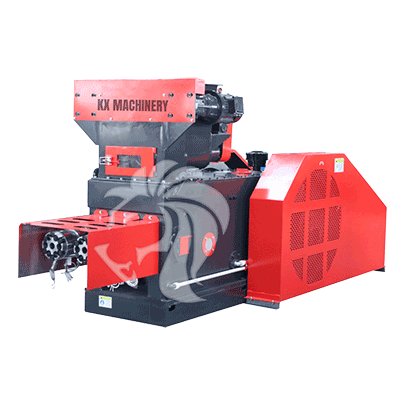

The waste paper briquetting machine is primarily designed to compress waste paper generated from industrial production or household waste. Loose waste paper typically has a low density, requiring significant storage space and posing potential fire hazards. Our paper briquetting machine effectively compacts waste paper into high-density fuel briquettes or pellets, significantly reducing storage costs. This process also converts waste paper into fuel with a high calorific value, making it an efficient and environmentally friendly solution for waste paper management.

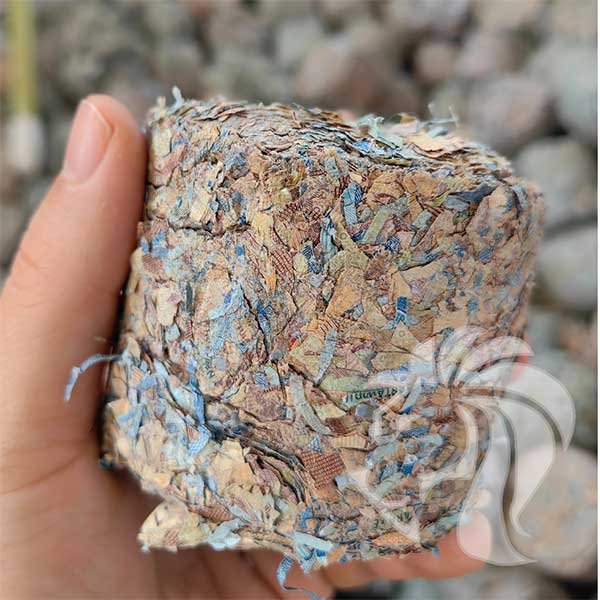

The diameter of paper briquettes typically ranges f
rom 25 mm to 60 mm, while paper pellets usually have a diameter between 6 mm and 10 mm. These products are manufactured by different equipment. For making good density waste paper briquettes, the paper needs to be small size, generally not exceeding 50 mm. However, to produce paper pellets, the paper must be crushed to a size smaller than 10 mm. The finer the paper is crushed, the higher the output efficiency of the pellet machine.

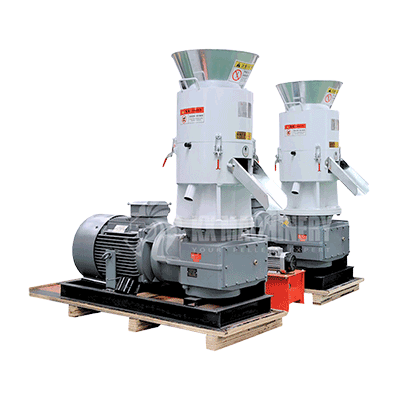

When producing waste paper pellets, a flat-die pellet machine is commonly used, as it allows waste paper to enter the molding chamber more efficiently, improving overall production efficiency.

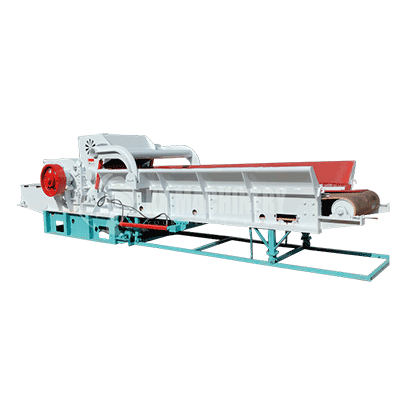

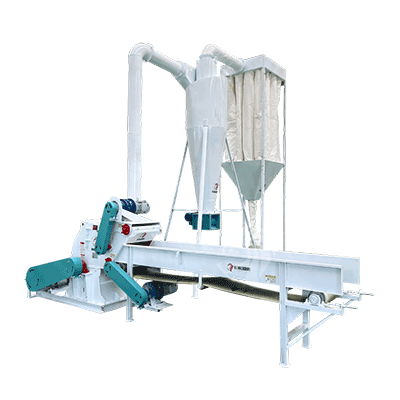

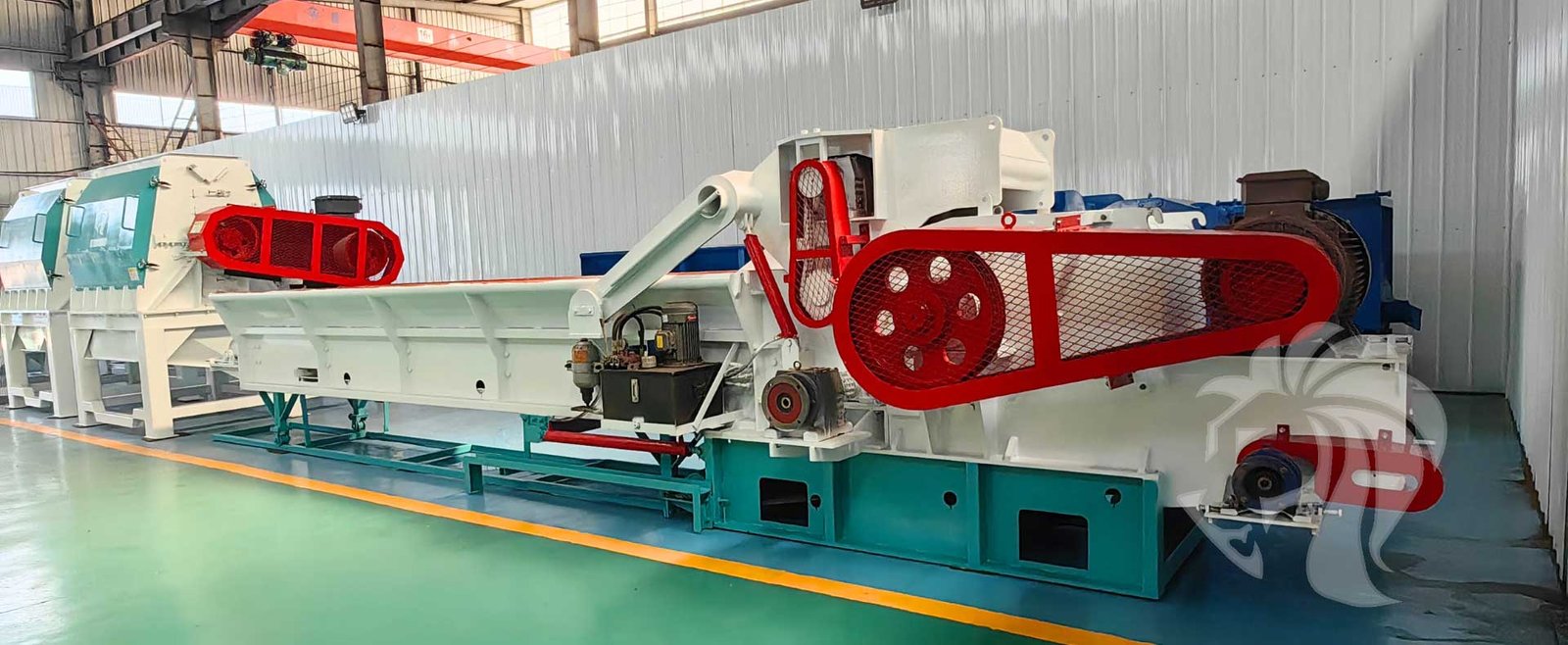

Waste paper and cardboard are generally large in size, but their moisture content is typically low, so they only need to be crushed to produce pellets. To efficiently crush waste paper, a specialized soft material crusher is required. This machine has been upgraded from its original design, incorporating a shearing mechanism for greater efficiency. Unlike single- or double-shaft shredders, it features interchangeable screens of various sizes, ensuring the desired size is achieved in a single crushing process. This results in lower investment costs and higher crushing efficiency, making it the best option for waste paper recycling today.
| TYPES | MOTOR | CAPACITY | MACHINERY WEIGHT |
| KX-LM500 | 22kw | 500-800KG/H | 4000KGS |
| KX-LM1000 | 45kw | 800-1200KG/H | 6000KGS |
| KX-LM2000 | 75kw | 1500-2500KG/H | 10000KGS |
| KX-LM3000 | 160kw | 3000-4000KG/H | 20000KGS |
Yes, that is possible. Our specialized paper pellet machines are capable of producing pellets in that size range. However, the waste paper must first be shredded before it can be processed into pellets.
The calorific value depends on the type of raw materials used. Whether you’re using a waste paper briquette machine or a pellet machine, these machines do not alter the original calorific value of the materials.
The output capacity can be adjusted to meet your needs. We offer customizable home machines with a production capacity as low as 50-80 kg per hour.
