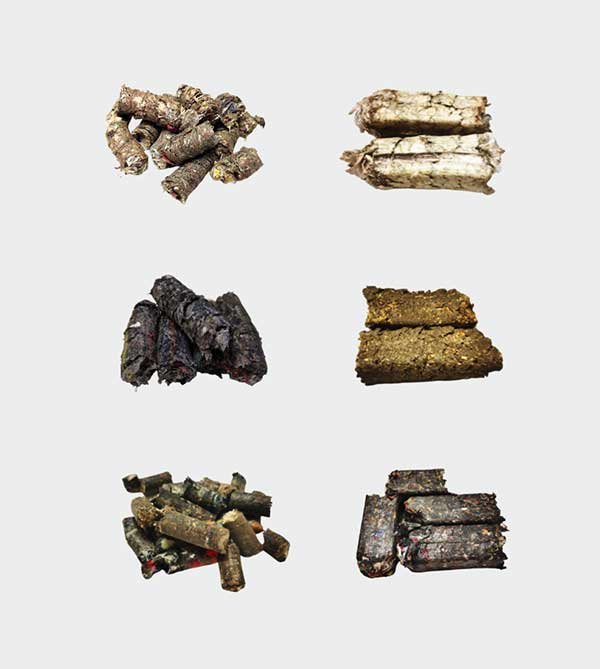

Piston-Type RDF Pelletizing or Briquetting Machines Can Make RDF Briquettes From MSW Waste and Industrial Waste. The Pellet or Briquettes With High-Value, 20mm-60mm In Size.
The RDF Briquetting machine is mainly used in the fuel briquetting production line and industrial waste treatment. It can minimize the cost of transportation and combustion, and also support to realize the resource utilization of municipal solid waste. After more than 6 years of continuous technology improvement and development, our unique double forming die design RDF briquette machine successfully achieved 50% energy saving, maximum capacity, fully automatic PLC control, and 24-hours continuous stable running. The split type forming die design also meets the lowest cost request to the quick-wear parts.

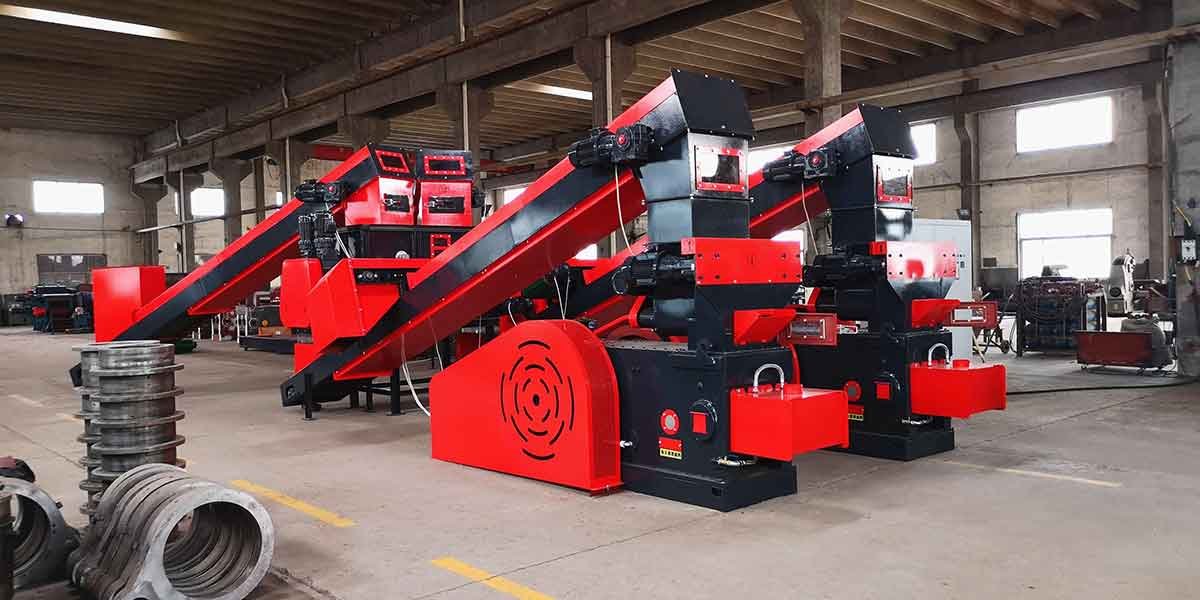

The advantage of the RDF briquetting machine is its low energy consumption and stable operation. The working principle of the stamping machine is that the crank connecting rod drives the punch to reciprocate, and the maximum pressure can reach more than 700 tons. And our machines with unique dual-mode design reduce energy consumption by 50%.
The composition of MSW and Industrial waste is complex, and usually, only combustible ingredients can be processed into RDF briquettes, such raw materials include waste plastic, PVC, rubber, woven fabrics, waste paper, waste wood, broken wasted furniture, and other combustible ingredients. As for the material composition, the fuel heat value, and processing cost will be different based on actual condition, you could contact us to confirm case by case.
Unlike biomass briquette fuel, the composition of MSW and ISW RDF fuel is complex, but its calorific value is higher and stable, considering these factors, the requirements for combustion conditions is higher some, so at present, most of the finished products of such kinds projects are used for industrial purposes, we could send more details for reference if you are interested in this field.
Although the feed size and moisture requirements of the briquetting machine are not as high as those for biomass raw materials, MSW and industrial waste generally also require pretreatment. It includes shredding and screening so that the size could keep within 40 mm, removing the stone, sand, glass, iron parts, and the moisture content no more than 25%. If you want to know more, please click here – A guide to RDF Briquetting Plant.

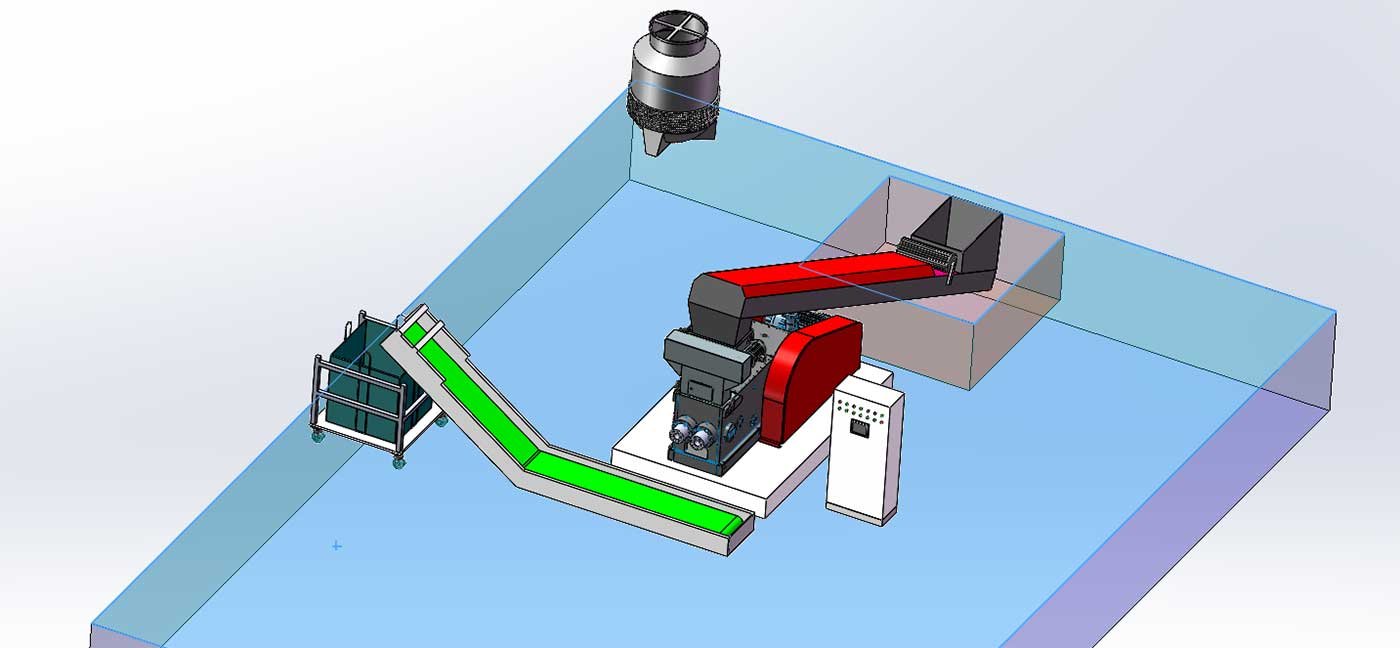

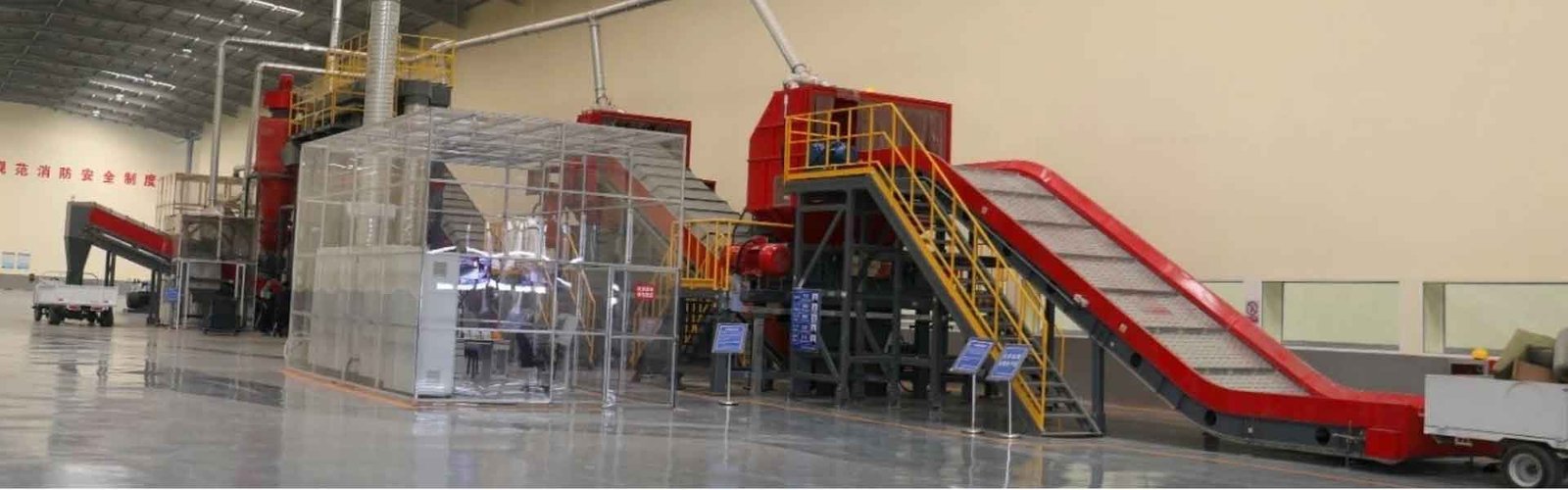

Above is one of the projects we delivered, their raw material is wasted big furniture and spring-mattress, the plant including shredding section, sorting section, separating section, and a press section. For more details, contact us directly.
| Model | Briquette Shape | Briquette Size | Capacity |
| 1000 | Round Shape | 20-60mm | More than 800kg/h |
| 2000 | Round Shape | 20-60mm | More than 1500kg/h |
We have many models and configurations to match different output and raw materials. So we need to confirm your raw material type and output request before giving an accurate quotation.。
Yes, but the specific size needs to be determined according to your raw materials and output. To reduce the production cost, the diameter of the briquette will not be too small for many customers, and the size is mainly round and square.
Our SFR briquetting machine is designed for industrial usage, with large and stable output. In addition, it with a high degree of automation, which is very different from small kinds. Our machines are used for large-scale waste treatment projects.
Although all are called RDF briquettes, the composition of MSW briquette and industrial waste briquette is still different, so the post-processing after combustion is different, and the applicability to boilers is also not the same. You can contact us for more details.
Your RDF fuel briquettes expert, be your support and partner and provide turn-key customization service case by case.
